Industrial Embroidery Machines
Merlin GS-1204 - Four Head Embroidery Machine
Merlin Pro Four Head Embroidery Machine

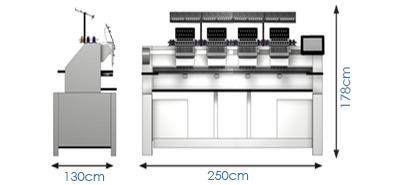

Merlin Pro Four Head Dimentions
Four-head, Twelve-needle Embroidery Machine with Caps.

4 Heads - 12 Needles
Max Speed - 1000 SPM
Maximum Sewing Area: 45 cm x 45 cm (17.7" x 17.7")
Touch Screen - 26 cm (10.2")
On board Monogram Maestro Software
1,000,000 Stitch Memory
USB Port Ready
270° Wide Angle Cap System
Networkable and Wi-Fi Capable
Bobbin Winder
Automatic Thread Trimmer & Auto Colour Change
Thread Break Detection

Cap Frame Attachment Included
4 x 270° Wide Cap Frame Driver
8 x Cap Frames
1 x Snap in & Snap Out Cap Frame Device

Frames & Hoops Included
8 x Circular Hoops - 15cm (5.9")
8 x Circular Hoops - 18 cm (7.0")
8 x Rectangular Hoops - 24 x 30 cm (9.4" x 11.8")







Machine Features
Included with every embroidery machine in the Merlin Pro range is a touch screen console. This allows access to the control software on the machine, enabling the user to select a frame size, input colours, control stitching speeds etc. In addition to this control software, every machine also has our Monogram Maestro software loaded. This is a powerful package that re-introduces the concept of 'monogramming' directly on the embroidery machine rather than having to use a separate software package on a PC
Editing designs
Editing Designs
Load in one of your own logos or choose one from the library of 120+ designs and add the text you require. The height, colour and position of the text can be adjusted, it is even possible to change the stitching order of a design. Designs may also be rotated, mirrored and re-scaled.
Frame selection
Frame Selection
The touch screen control panel displaysthe frames available. Once a frame is selected, simply load in your design and if the chosen frame is not large enough for the design you will be prompted to select another. In addition to the frame display an LED trace function is available.
Monnogramming
Monogramming
The Monogram Maestro software includes 56 fonts, which can be created in any height/colour etc. A selection of lettering deforms are available. Numerous monogram designs are also included, simply select the monogram style you want to use and type out the initials you need.
